Main Features

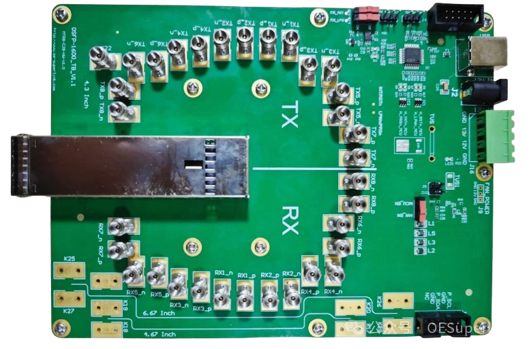

1. 1.6T optical module test board adopting M8U high-speed material and 1.0mm connectors, compliant with standards including SFF-8679, SFF-8024 and IEEE 802.3ck.
2. Compatible with USB-to-I2C adapter boards for upper computer communication.

Parameter                     Specification

Module Type                  OSFP

Operating Rate               8×224 Gbps

Interface Bandwidth       DC to 70 GHz @ 1.0mm

Power Supply                 External Input

Functional Interface        External Control

I2C Interface                   USB-to-I2C

MSA Protocol Support    Supports upper computer read/write operations

Line Impedance              Differential 100Ω±5%
