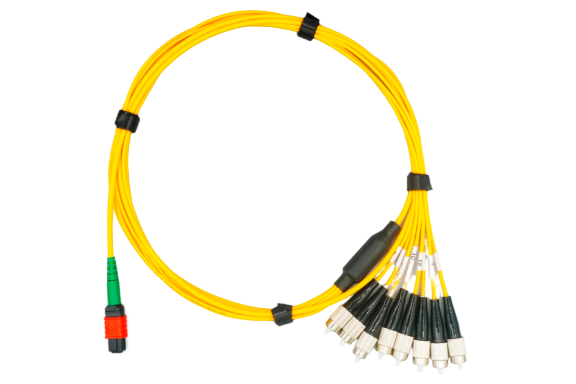

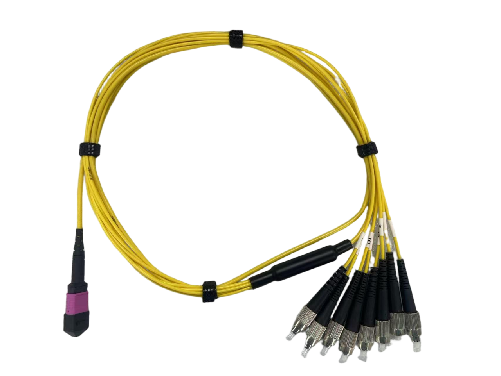

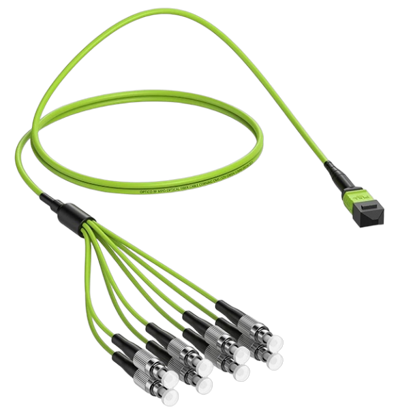

Fiber Patch Cord MPO/MTP/LC/SC/FC
Custom Fiber Optic Test Patch Cords for Partners, Featuring Fiber Cores from Senko or Usconec—Tailor-Made for Users with Exceptionally Stringent Requirements.
Main Technical Parameters:
Insertion Loss (IL):
- MTP/MPO (APC) Single-Mode: 0.15 dB (Typical), 0.35 dB (Maximum)
- LS/SC/FC (APC/UPC) Single-Mode: 0.15 dB (Typical), 0.35 dB (Maximum)
Return Loss (RL):
- MTP/MPO (APC) Single-Mode: 60 dB (Minimum)
- LS/SC/FC (APC) Single-Mode: 65 dB (Minimum)
- LS/SC/FC (UPC) Single-Mode: 50 dB (Minimum)
