Equipment Features：

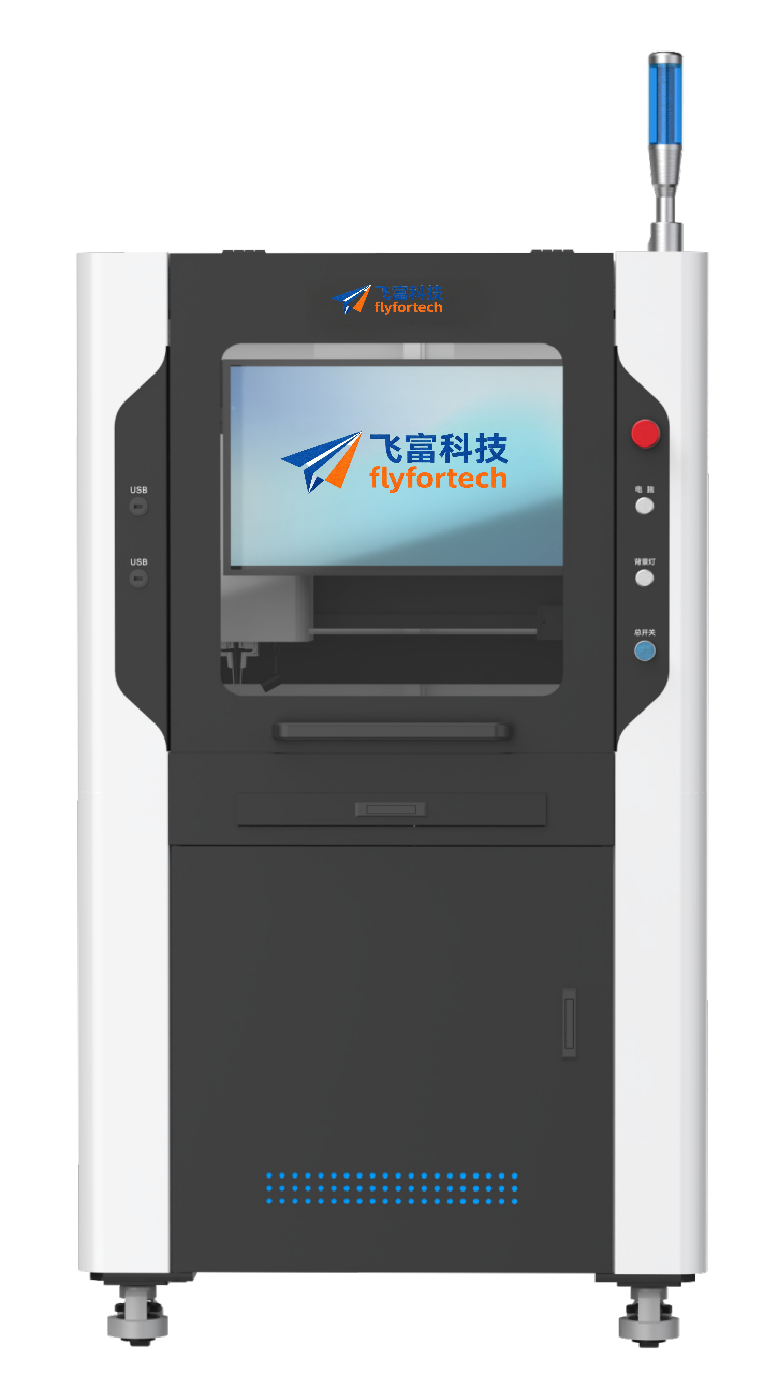

Fully automatic flying probe testing, no manual loading required; equipped with a high-definition camera for automatic visual inspection of appearance.

Supports testing of 01005 components; supports testing of components with arbitrary mounting angles.

Reduces labor requirement by 1.5 personnel and increases testing speed by 3 times; intelligently extracts component dimensions and automatically adjusts probe span.

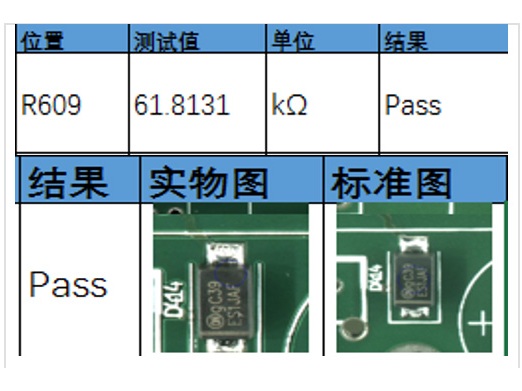

Can be docked with the user's MES system; the test report is illustrated with text and images for easy traceability.

Performance Parameters：

Parameter                                      Specification

Measurable Component Sizes       01005/0201/0402/0603/0805/1206/1210/1812/2010/2512

Measurable Components              SMD resistors, capacitors, chip ICs

Measurable Mounting Angles       Any angle

Max PCBA Size                            430×330 mm (Customizable for larger sizes)

Board Types                                  Solder paste boards, paper-based copper-clad boards, red glue boards

Camera Pixel                           10MP

Testing Speed                           1 PCS/1.5 S

Labor Requirement                     0.3 personnel

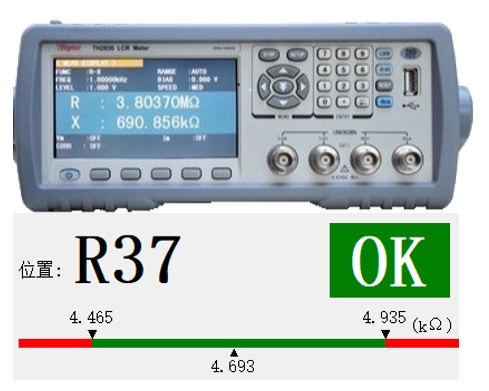

Equipment Functions                     Component measurement, silk-screen comparison, mounting angle and

                                                       orientation judgment, missing component detection
